With analysis and statistic function of E6500 Data Acquisition Unit, energy efficiency analysis, quality management, batch management and event record etc. are available. It consists of 3 setpoint program control modules, 4 PID control modules, 6 ON/OFF control modules and 60 function modules. It offers various complex control strategies and complete data calculation and statistics. With RS-232C/RS-485 serials communication or the Ethernet interface, real-time monitor, remote diagnosis, settings management and history transfer can be fully utilized. The front panel of the E6500 Data Acquisition Unit comes up to IP54.
Event & Statistics Logs Up to 512 pieces of custom events, such as valve-open, special alarm and so on, can be logged to analyze. It can be triggered by digital signals. Up to 32 batches custom statistic messages, such as the maximum, the minimum, the average, alarm frequency, alarm duration of analog signals can be logged for analysis. It can be logged manually or triggered by digital signals.
Powerful Controlling Modules
4 PID modules, 3 setpoint program modules and 6 ON/OFF modules are provided. With maths expression, PID modules can be configured as complex control strategies such as cascade, ratio, split ranging, feed forward, averaging control, 3-element control for process industries. Some control modes such as step, logic, batch, and timing for automation control of equipments are provided, too. The setpoint program modules can vary the setpoint in a controlled manner over a set period of time. The output of the program is divided into a flexible number of segments - each being a unit of time, and can be the setpoint value of PID module. The ON/OFF modules are always used for a single object with a large time constant and a small dead time, such as temperature control for constant temperature box and heat-up furnace, water level control for tank, pressure control for air compressor and so on.
Maths Functions Up to 60 functions are offered to develop custom solutions. These functions, such as arithmetic, Boolean, mathematical calculation, relational operation, complicated logical function, statistic function, timer operation, etc., can be applied with control modules to realize very complicated control. Mass Flow Compensation For obtaining a more precise fluid flow measurement, the E6500 provides 5 preset selections, SHS (superheated stream), STS (saturated steam), GAS (ideal gas), LPC (linear pressure compensation), and LTC (linear temperature compensation). Removable Media Up to 2G CF card is accepted to transfer the history data, the settings, the logging data and the monitoring displays from E6500 to PC.
• Water Treatment
• Environment Monitoring
• Food & Beverage Processing
• Heat Treatment
• Pulp & Paper
• Oil & Gas
• Electric Power
• Process Applications
Normal operating conditions:
(0~85)% RH (non-condensing)
Transport and storage conditions:
(0~90)% RH (non-condensing)
Safety Standards and Certifications
Front panel dustproof/water resistance specifications:
Dimension and weight:

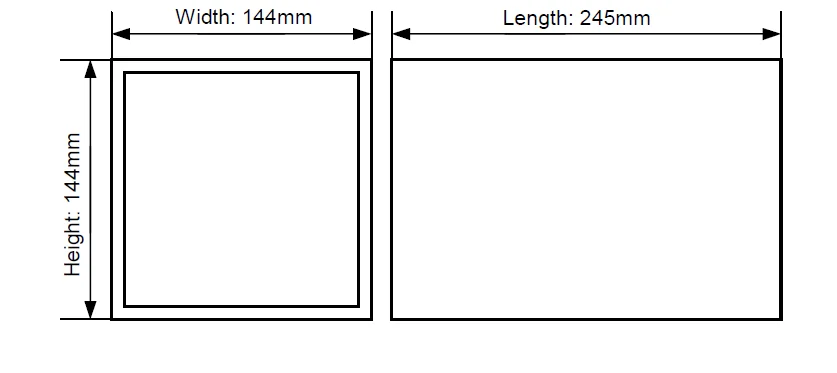

(144*144*242)mm； 2.5kg approx.
Thickness of mounting panel:
5.6" TFT chromatic LCD
5.6" TFT monochromatic LCD
3-level adjustable brightness
Transmitter Power Supply
1)Up to 60 functions are offered to develop complex and flexible custom solutions.
2) Up to 128MB inbuilt memory is provided for long-term history data storage.The interval is optional from 0.125sec to 60 hrs. History data in AR3100/AR4100 can be transferred to computer by communication or using USB flash disk.
3) For obtaining a more precise fluid flow measurement, the AR3100/AR4100 provides 5 preset selections, SHS, STS, GAS, LPC and LTC.
4) Up to 2G USB flash disk is accepted to trasfer the history data, the settings, the logging data and the monitoring displays from recorder to PC.
5) 2 serial communications are offered including RS-232C and RS-485 using the Modbus/Rbus protocal. Additionally, Ethernet with TCP/IP protocol is also provided.
Rear Terminal Connections
Packing & Delivery
320 (L) * 240 (W) * 250 (D)
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
