SUPCON SKH China Absolute Pressure Transmitter(Direct Mount Type)

FOB Reference Price:Get Latest Price
US $500-700 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUPCON
Model Number:
SKP Transmitter
Usage::
measuring the flow,level
OEM,ODM::
Welcome
Surface Treatment::
Polyurethane Coating
Style::
Smart
Market::
worldwide
Sample Lead Time::
7-15 days
Color::
silver and atrovirens
Finish::
Printing
Advantage::
High accuracy and stability
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1Pcs/Ctn for pressure transmitter,Packing Size: 26.5*21.5*19.5cm/ctn
Port
ShangHai NingBo
Product Description

Product Application

The CXT smart pressure transmitter utilizes a unique compositive monocrystalline piezoresistive sensor and the advanced cell design with state-of-the-art microprocessor technology, up to 0.035% accuracy for all calibrated spans, ±0.1% of upper range limit (URL) for 10 years, has a longer service life, the use of safe and reliable and convenient.

It is designed for various industries including Petroleum, Power, Chemical, Metallurgy, Pharmacy, Light industry and more.


SKP Direct Mount Type Pressure Transmitter


The pressure transmitter model SKP can be used to measure liquid, gas, or steam as well as pressure. It outputs a 4 to 20 mA DC signal corre-sponding to the measured differential pressure.

Model CXT also features remote setup and monitoring through communications with the terminal and HART host.

SPECIFICATIONS

General Specification
Service
Liquid, gas and vapor applications
Output
4~20mA with Hart
Power Supply
(10.5~45)VDC





Main performance parameters
Accuracy
±0.05%
Stability
±0.1% of upper range limit (URL) for 10 years.
Electrical connections
M20*1.5(M),1/2-14NPT,as specified
Diaphragm material
SS316L, Hastelloy C
Pressure range
(6~40)kPa, (25~250)kPa, (100~3000)kPa, (500~10000)kPa, (4000~40000)kPa
Environmental protection
IEC IP67



Physical Specifications
Indicator
An optional 5-digit LCD meter with enginerring unit is also available.
EMC Conformity
EMC(2004/108/EC)
Process connections
1/2-14NPT(female thread), 1/2-14NPT(male thread), M20*1.5(male thread),G1/2(male thread), as specified.
Weight
2.2kg without options

Main Features

1) High Accuracy:  0.05%.

2) Stability:  ±0.1%  of upper range limit (URL) for 10 years.

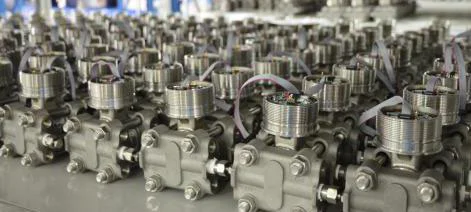

Core parts


Welcome Customization

Double Flange Gold-plated Diaphragm

Long Diaphragm Extension

Depth of insert tube is up to 450mm


Small Flange Long Capillary

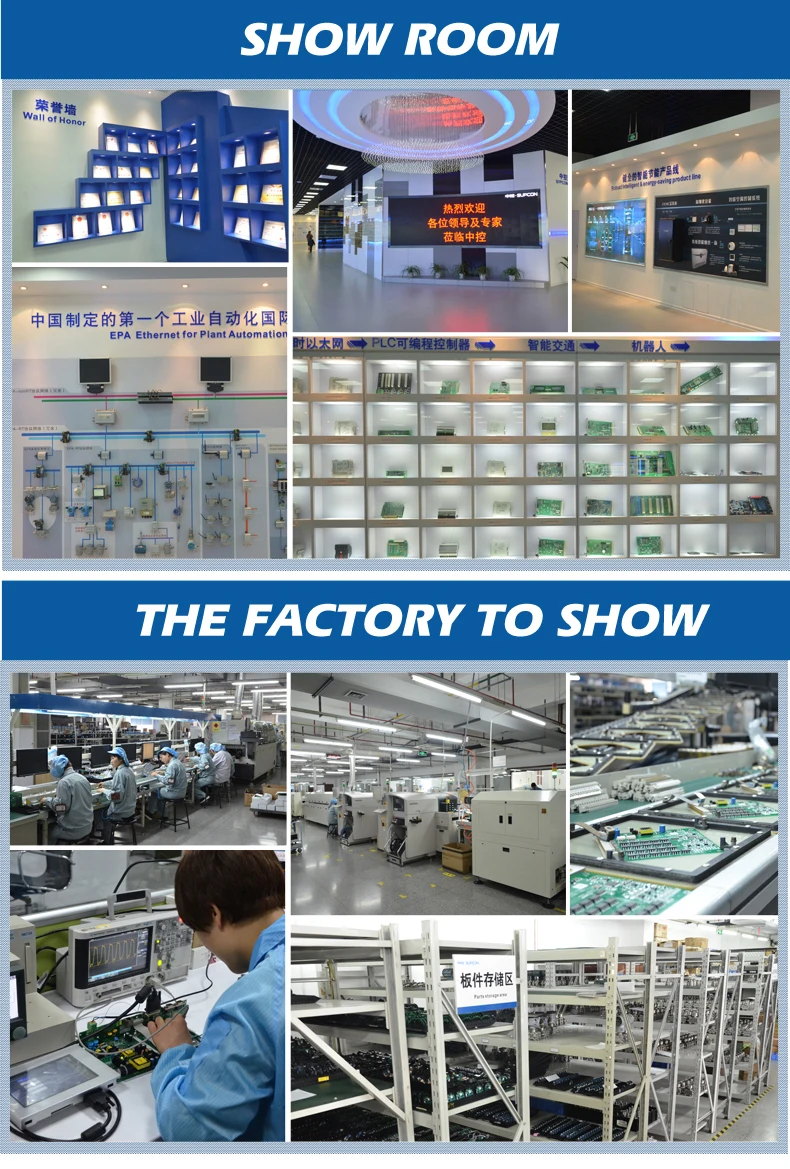

Exhibition
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
