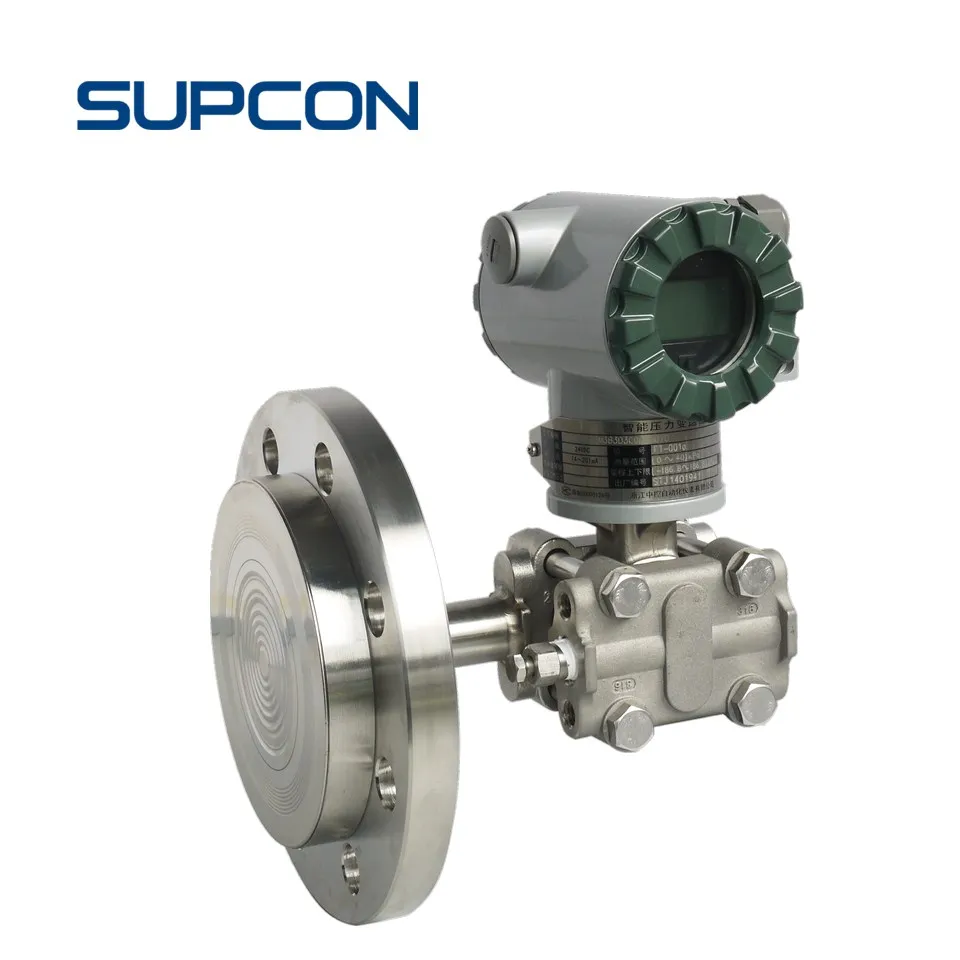

Factory direct Polycrystalline silicon sensor SUPCON CXT series pressure transmitter

FOB Reference Price:Get Latest Price
US $499-1,999 / Sets | 1 Set/Sets (Min. Order)
Material:
Diaphragm 316L
Accuracy:
0.05%
Type:
Guage pressure
Pressure Range:
0~40Mpa
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUPCON
Model Number:
SKC
Accuracy grade:
up to:±0.035%
Stability:
±0.1%/10 years
Range:
100Pa-40MPa
Work temperature:
(-40~320)℃
Environmental temperature:
(-40~85)℃
IP:
IP67 Hazardous Location
Product Name:
pressure transmitter
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month pressure transmitter
Packaging & Delivery
Packaging Details
1Pcs/Ctn for origin differential pressure transmitter
Packing Size: 26.5*21.5*19.5cm/ctn
2.5KG/CTN
Port
ShangHai NingBo
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(day) 15 To be negotiated
Video Description
Product Description

Product Application

The CXT smart pressure transmitter utilizes a unique compositive monocrystalline piezoresistive sensor and the advanced cell design with state-of-the-art microprocessor technology, up to 0.035% accuracy for all calibrated spans, ±0.1% of upper range limit (URL) for 10 years, has a longer service life, the use of safe and reliable and convenient.

It is designed for various industries including Petroleum, Power, Chemical, Metallurgy, Pharmacy, Light industry and more.

SPECIFICATIONS

General Specification
Service
Liquid, gas and vapor applications
Output
4~20mA with Hart
Power Supply
(10.5~45)VDC





Main performance parameters
Accuracy
±0.05%
Stability
±0.1% of upper range limit (URL) for 10 years.
Electrical connections
M20*1.5(M),1/2-14NPT,customer
Diaphragm material
S316L, Hastelloy C
Pressure range
(0~40)Mpa
Environmental protection
IEC IP67



Physical Specifications
Indicator
An optional 5-digit LCD meter with enginerring unit is also available.
EMC Conformity
EMC(2004/108/EC)
Process connections
1/4-18NPT
Weight
3.1 to 3.6kg without options

Main Features

1) High Accuracy:  0.05%.

2) Stability:  ±0.1%  of upper range limit (URL) for 10 years.

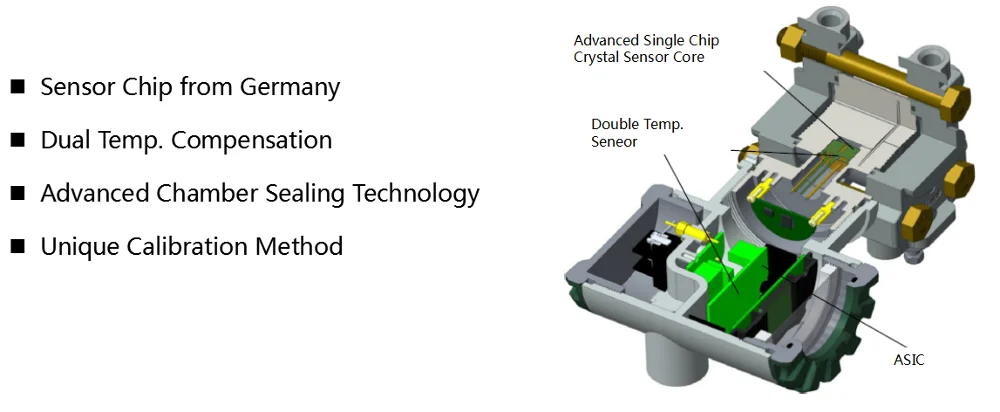

Core parts


Welcome Customization

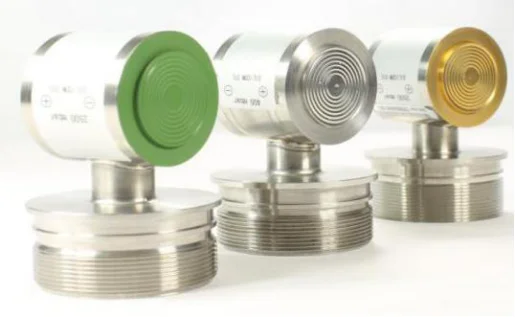

Double Flange Gold-plated Diaphragm

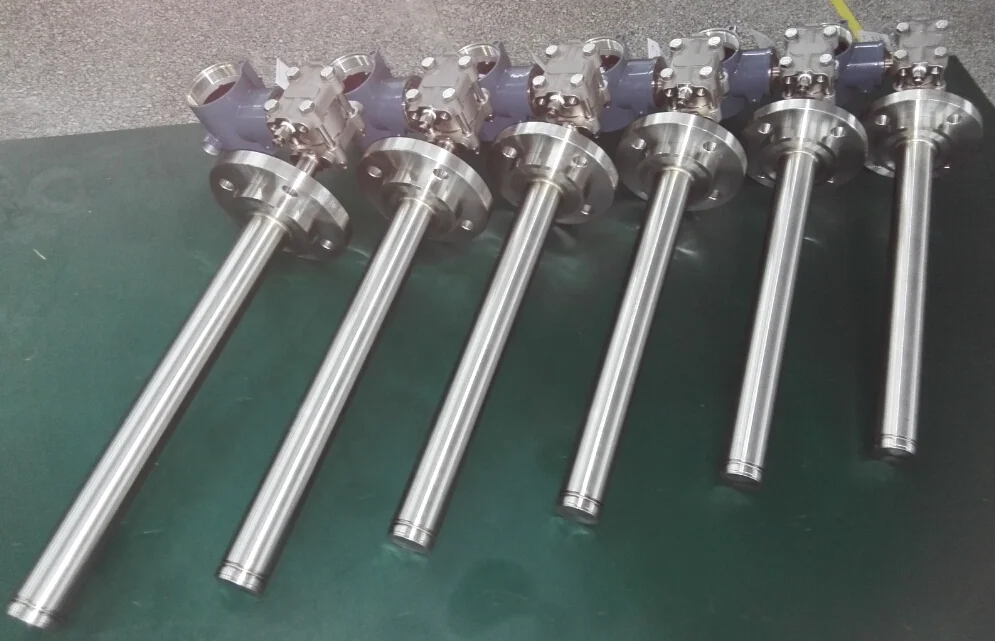

Long Diaphragm Extension

Depth of insert tube is up to 450mm


Small Flange Long Capillary

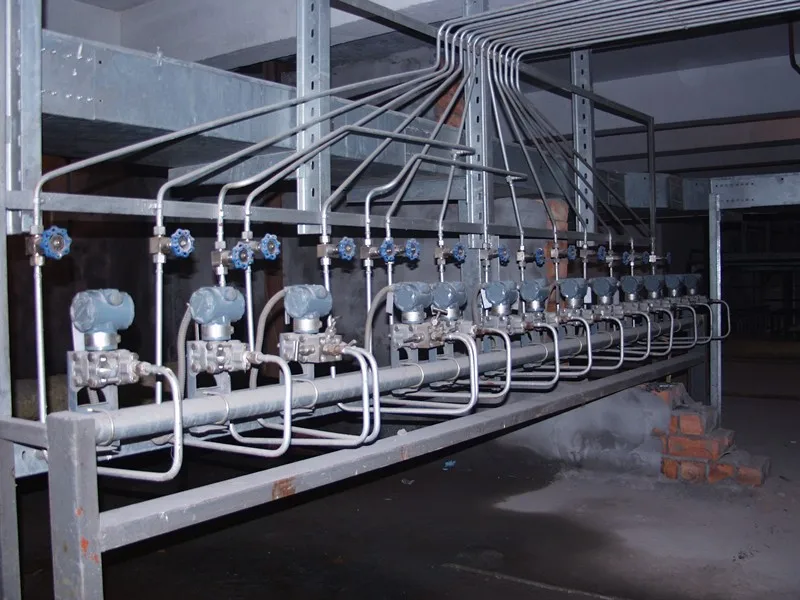

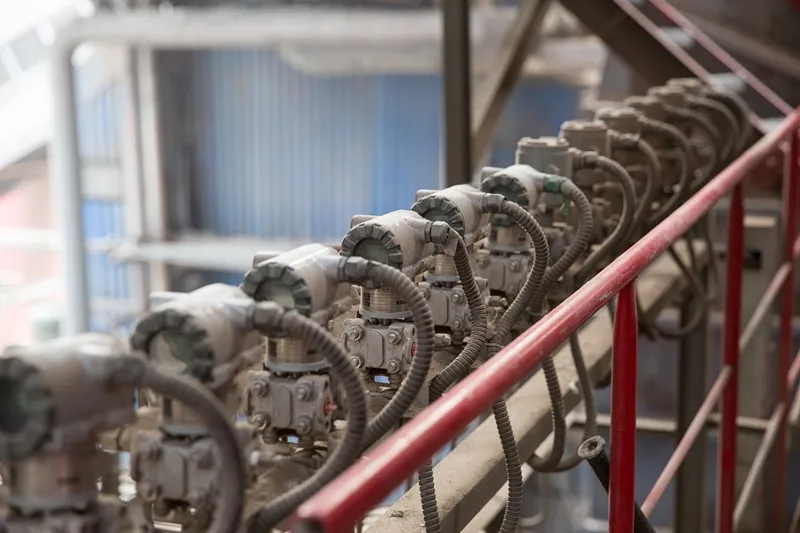

Appalication
Certifications
Packing & Delivery
Packaging
Size
560 (L) * 310 (W) *320 (D)     DN100
Weight
20kg



Packaging Details
 The normal package is paper box.If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

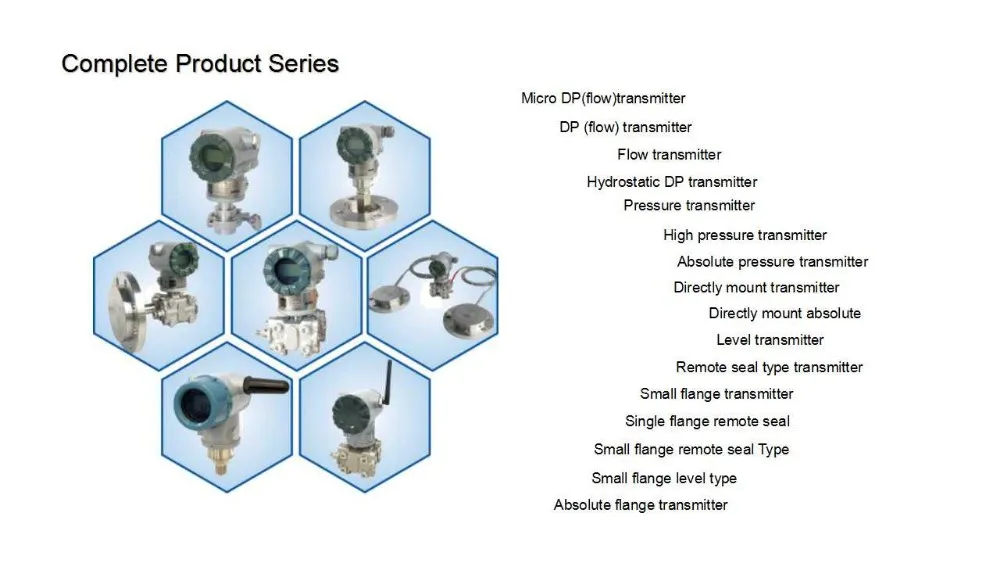

Related Products

SKP Pressure Transmitter

91.8% Response Rate

SKD Remote Seal Type differential pressure transmitter

91.8% Response Rate

SKE level Transmitter

91.8% Response Rate

Our Company

A Leading Automation Supplier


Founded in March 1993, SUPCON is one of China's leading providers of automation and information technology, products and solutions. SUPCON has grown rapidly on the back of cutting-edge systems for the development of innovative and solutions are applied in over 35 countries and regions worldwide.

SUPCON has strong technical force, well-processing equipment, a complete quality management system.
Using advanced production technology and integrated quality management system to ensure the quality of our products.
And we have got many Certifications, including ISO 9001 AND 14,001 certification, CE, SIL and so on.

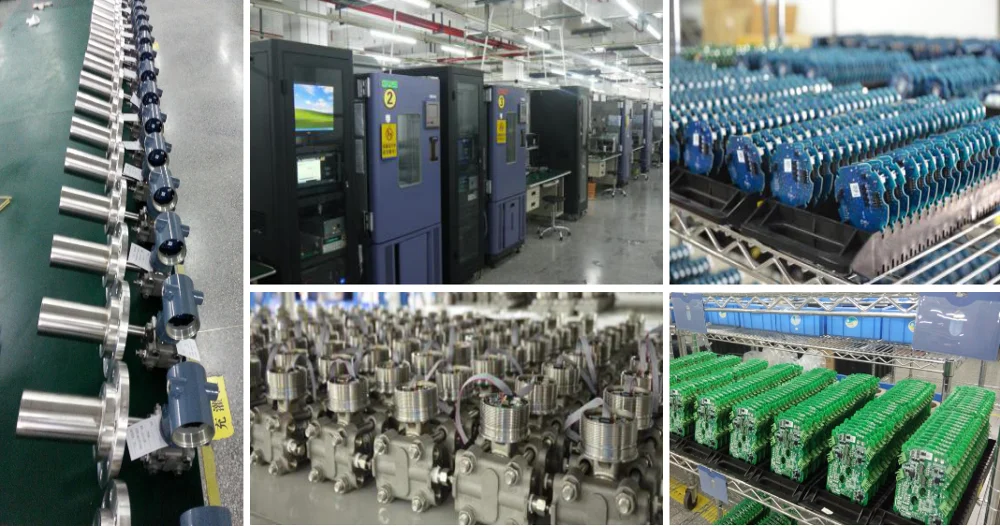

                        SMT

                   Coating


                   Calibrating
