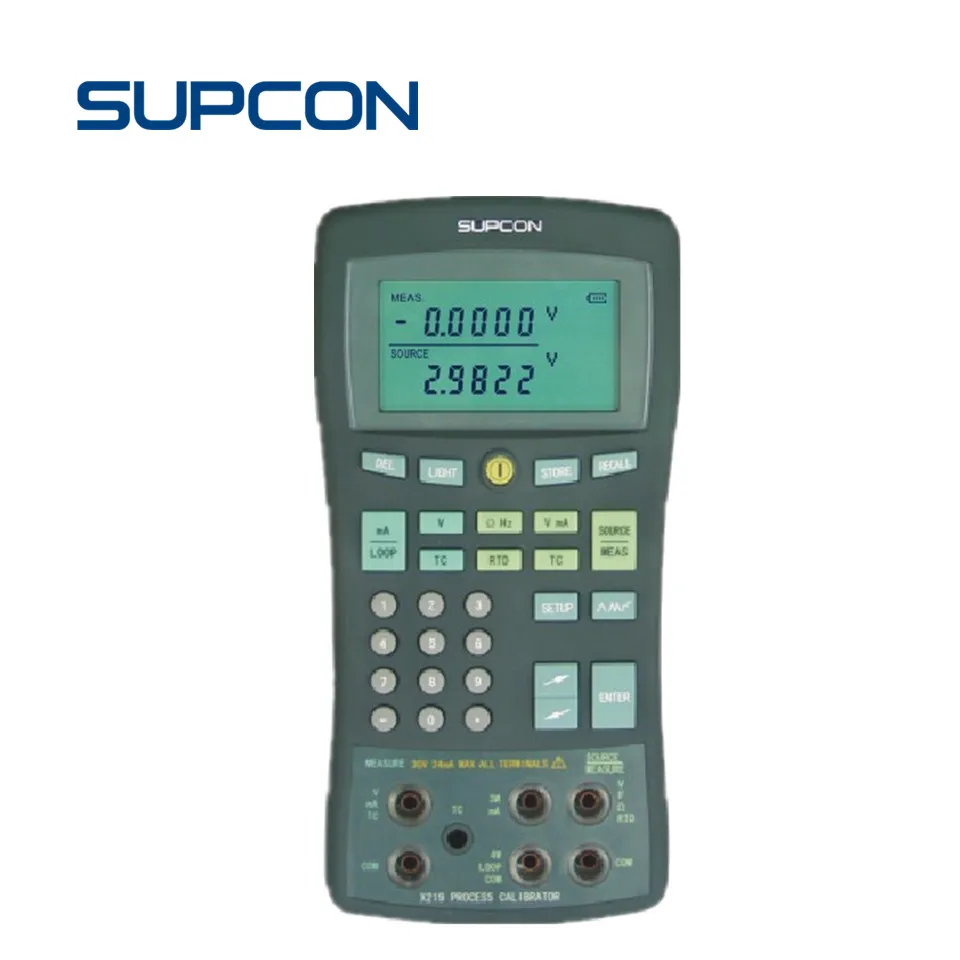

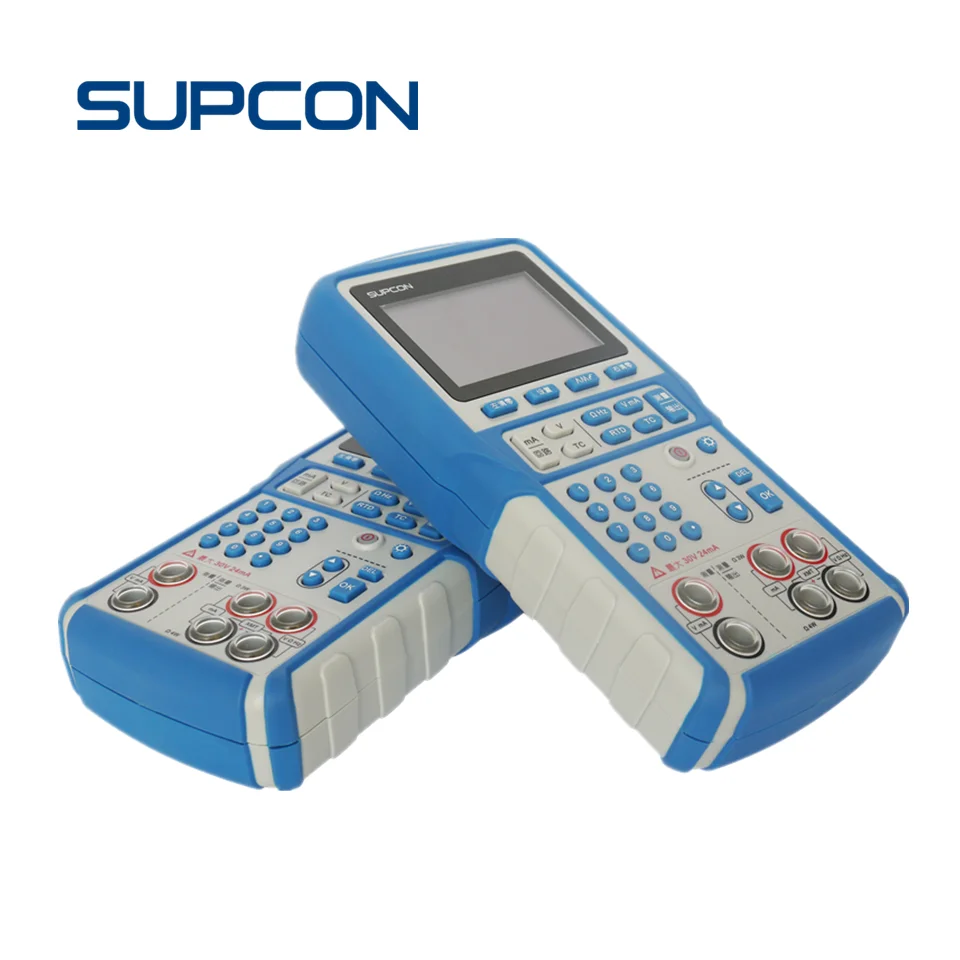

The X-II series All-season performance factory directly thermal conductivity calibration instrument is a hand-hold, battery-powered instrument that measures and sources a variety of electrical parameters. It can be widely applied in industrial fields and laboratories.
A Split-screen Display The upper display allows you to measure volts, current and thermocouples. The lower display allows you to measure and source volts, resistance temperature detectors (RTD), thermocouples (TC), resistance and frequency.
Measuring Temperature with Thermocouples or RTDs The calibrator supports eight standard thermocouples, including types J, K, T, E, R, S, B or N. The calibrator supports six standard RTDs which are Cu50, Pt100, Pt100-3916, Pt200, Pt500 or Pt1000. The calibrator accepts RTD measurement input in two-, three-, or four-wire connections, with the three- wire connection the most common.
Ramping and Stepping the Output Two ways are available for adjusting the value of source function: manual stepping and ramping the output.
Zero Clearing For sourcing or measuring DC voltage, resistance, RTDS and TC, offset errors caused by internal elements or external factors can be cleared by the CLEAR keys.
Auto Flash Terminals You can connect the test leads according to auto flash prompt in order to avoid the misoperation.
The normal package is paper box(Size: 320L*240W*250H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
